Description
2/3/4 THREAD SERGER W/ INSTRUCTIONAL DVD

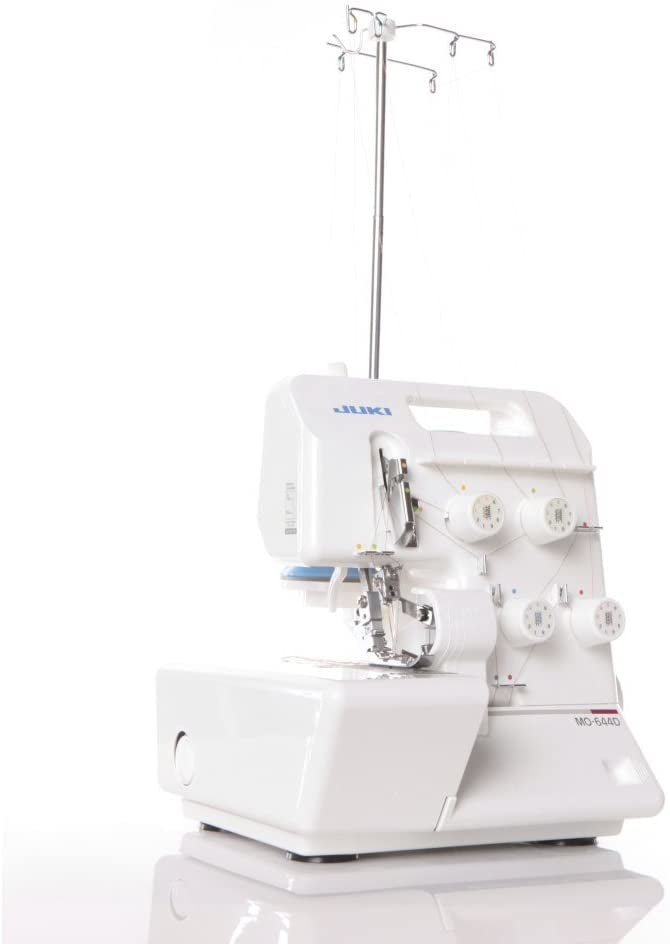

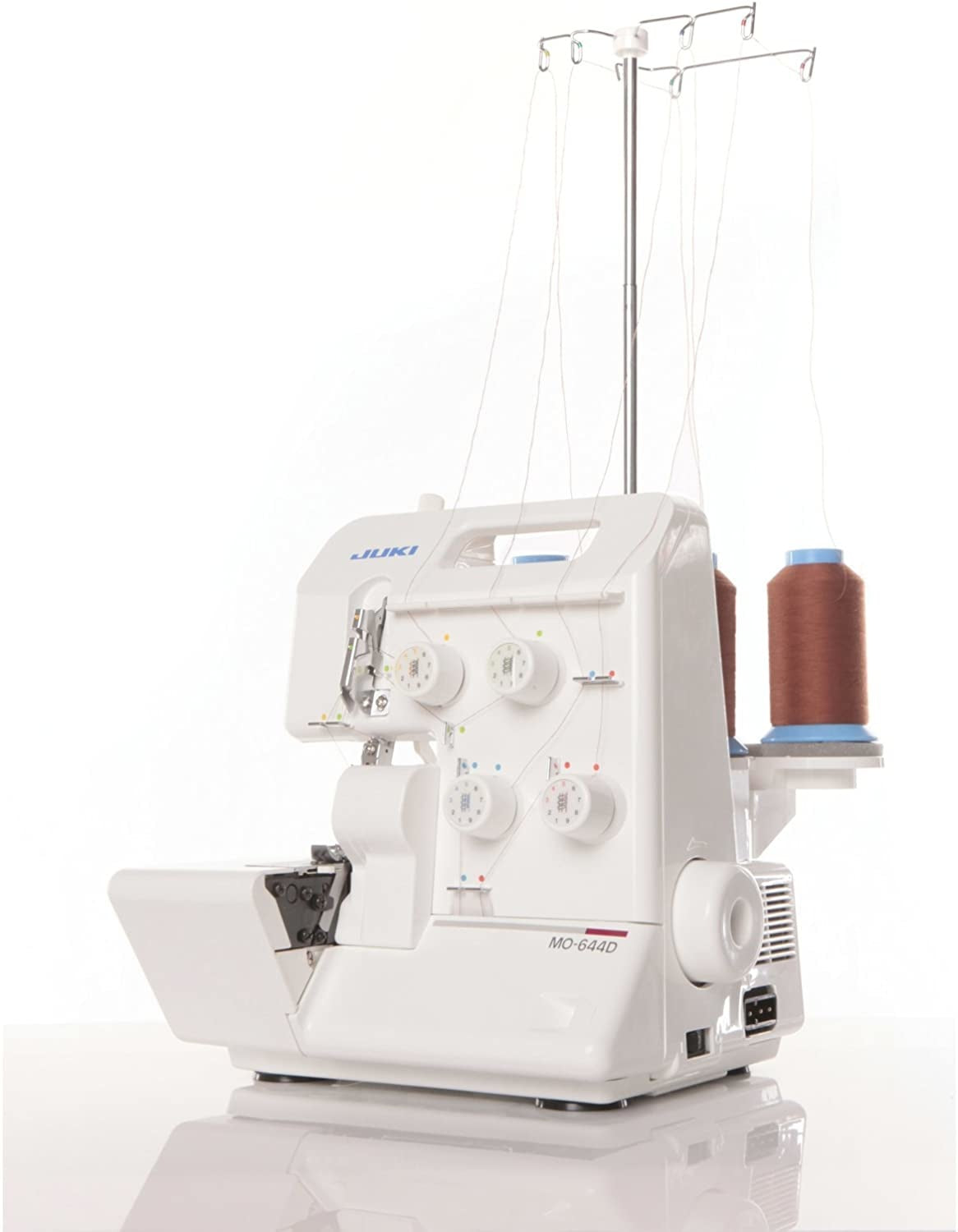

Both beginners and experienced sewists can create simple sportswear or elegant evening wear with unbelievable ease with the MO-644D. Expand your range of design and technique with the easy to operate, durable and dependable Juki 2-needle, 2/3/4 thread overlock machine. It features built-in rolled hemming and differential feed.
MACHINES AVAILABLE IN THE GARNET LINE ARE:
- The MO-623 single needle, 2/3 thread serger
- The MO-644D double needle, 2/3/4 thread serger
The Juki MO-644D handles the latest materials and threads to assist you in sewing the most fashionable apparel for the entire family, as well as accessories, crafts and home decorating items. The Garnet Line was developed with all types of sewing in mind, at a price you can afford. You'll get great serger performance for your individual needs.
COLOR CODED THREADING GUIDES
Color coded threading guides are located throughout the machine make threading easy and efficient.
ADJUSTABLE STITCH LENGTH
The stitch length is adjusted with ease. Just turn the knob inside the machine. Stitch length ranges from 1 to 4 millimeters (mm).

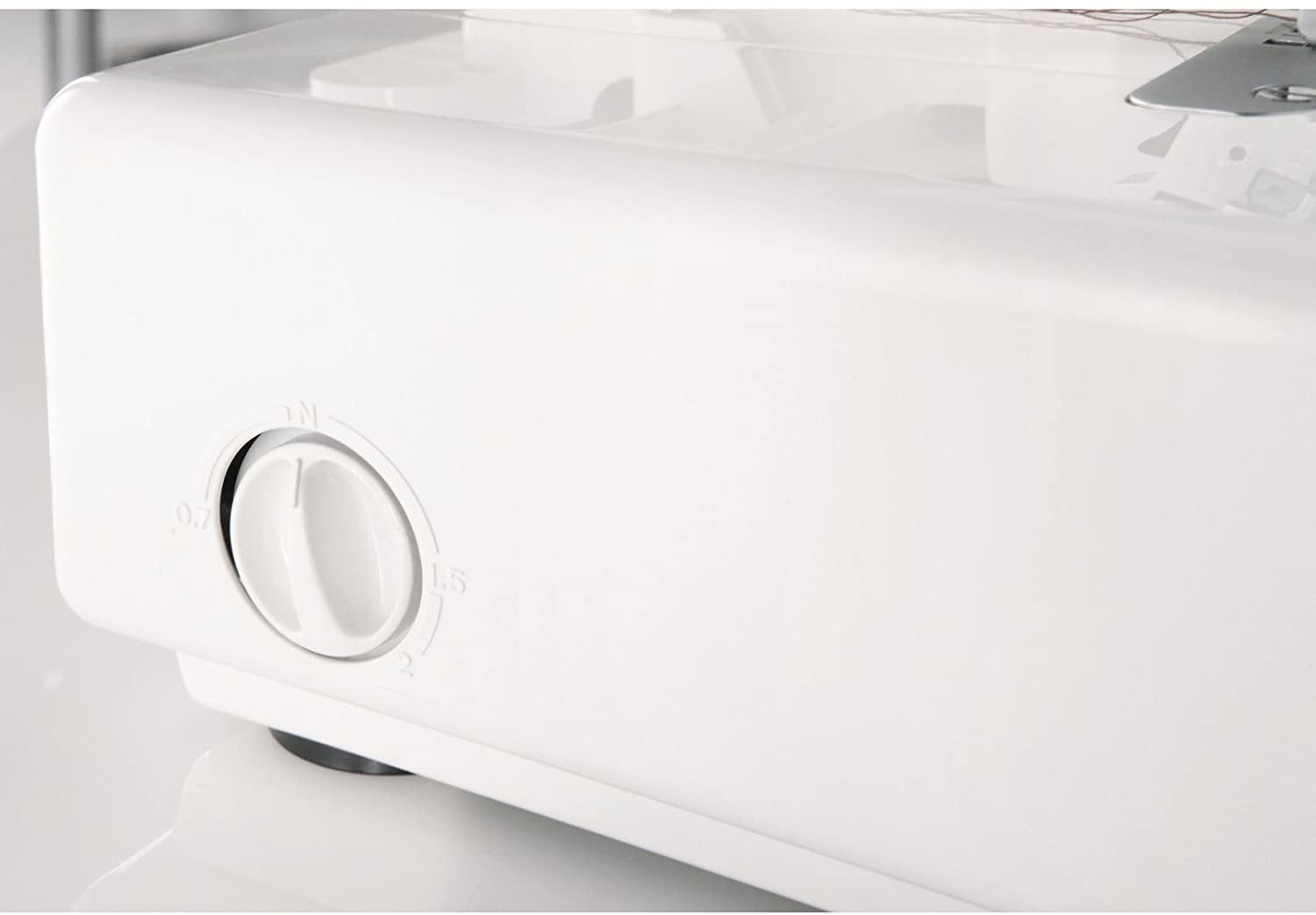

ADJUSTABLE DIFFERENTIAL FEED
The adjustable differential feed is controlled and adjusted by a dial conveniently located on the outside, left-hand side of the machine.
SINGLE ROTATION THREAD TENSION DIALS
1-Rotation thread tension dials. Normal tension settings are highlighted for simple, consistent tension adjustment.
EASY KNIFE ADJUSTMENT
The easy dial knife adjustment makes the upper knife completely self-adjusting.
HEAVY DUTY KNIFE SYSTEM
The heavy duty knife system has a dedicated drive to assure consistent and easy cutting of light to heavy weight fabrics.
AUTOMATIC ROLLED HEMMING
Automatic Rolled Hemming can be created with built-in finger tip control. There is no need to change the foot or plate.
SEWING LIGHT
The sewing light is placed to provide the best lighting to the fabric and needle areas.
MULTI-PURPOSE FOOT
The multi-purpose foot has a slotted tape guide for sewing woven tape, elastic, sequins and ribbon.
SEWING WIDTH GAUGE
The sewing width gauge takes the guesswork out of seam allowances. It is conveniently located on the guard cover.
OPTIONAL 2/3 THREAD CONVERTER
The optional 2/3 Thread Converter is easy to install. It allows 1 needle thread and one lower looper thread for securing overedging. The converter accessory must be purchased separately.
Specifications
- Sewing Speed: Maximum 1,500 spm
- Number of Threads: 2/3/4 Threads
- Needle: Household Machine Size 11 or 14
- Overlocking Width
- Left Needle: 8mm
- Right Needle: 4mm
- Rolled Hem: 2mm<
- Stitch Length
- 1 - 4mm
- Standard: 2.5mm
- Rolled Hem: 1.0 - 1.5mm
- Differential Feed: 0.07 : 2.0 Ratio
- Tension: Industrial Type Dial / 1 Rotation
- Built-In Rolled Hemming: Right (Narrow) or Left (Wide) Needle, 2 or 3 Thread
- Flat Lock: Right or Left Needle, 2 or 3 Thread
- Universal Presser Foot: Tape, Ribbon, Narrow Elastic Application
- Presser Foot Lift: 5mm
- Dimensions: 270mm Wide, 340mm Deep, 295mm Hig
- Weight: 7.0 kg (15 lbs.)
Included Accessories
- Presser foot
- Needle pack
- Spool caps
- Thread nets
- Looper threader
- Brush & needle inserter
- Tweezers
- Screwdriver
- Oiler
- Light bulb
- Foot control & power cord
- Instruction manual
- Accessory pouch
- Vinyl cover
