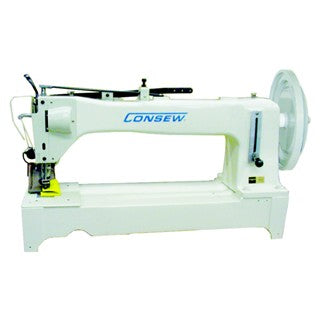

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.
With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-1/4" / 32mm), Two Row Feeder, Reverse Feed
Applications
- For stitching extra heavy-weight materials
- Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding
Features
- Synchronized upper and lower feeding mechanism assures uniform stitching
- Alternating presser feet
- Steel insert for take-up hinge
- Reverse stitching - hand or foot operated
- Stitch regulator - hand or foot operated
- Presser foot lift - hand or foot operated
- 1-1/4 inch presser foot lift
- Two row feeder
- Two stitches to the inch
- Stitches per minute - 550
- Extra large, long-beak oscillating shuttle, hook and bobbin
- Belt guard
ADDITIONAL INFORMATION
Specifications
| Number of Needles |
1 (Single) |
| Feeding Mechanism |
Walking Foot |
| Workspace |
Long Arm |
| Standard or Full Function |
Standard Functions |
| Speed, Max (S.P.M.) |
550 |
| Clearance Under Presser Foot |
1 1/4" (32mm) |
| Stitch Length |
2 s.p.i. (13mm) |
| Hook Size |
|
| Work Space |
25" (640mm) |
| Needle |
1000 or 1000H |
| Bobbin |
Pre-Wound 41 |
| Bed Size |
10" x 26 1/4" (258mm x 665mm) |
| Stitch Type |
301 |
| Weight |
231 lbs. (105kg) |
| Needle Bar Stroke |
2 3/32" (53mm) |
| Hook |
35224 |
