Description

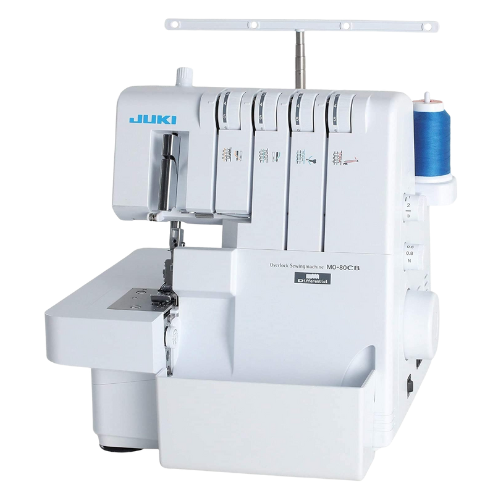

The MO-80CB is a 2-needle, 2/3/4 thread overlock with automatic rolled hem and differential feed. Additionally, the MO-80CB comes with free arm capabilities to attach sleeves, hem pants, and more! Embellish your creations with a variety of stitch patterns including 4-, 3-, and 2-thread overlock; 3-thread rolled hem, 3-thread narrow overlock, frill 3-thread rolled hem with differential feed, and 3-thread flatlock. Built to JUKI's industrial standards, the MO-80CB features various functions such as differential feed, cutting width, presser foot pressure, and adjustable stitch lengths for professional results.
DIFFERENTIAL FEED
Adjusting the differential feed allows you to sew beautiful finishes, even with stretchy fabrics such as knits and georgette. Adjustments can even be made while sewing.

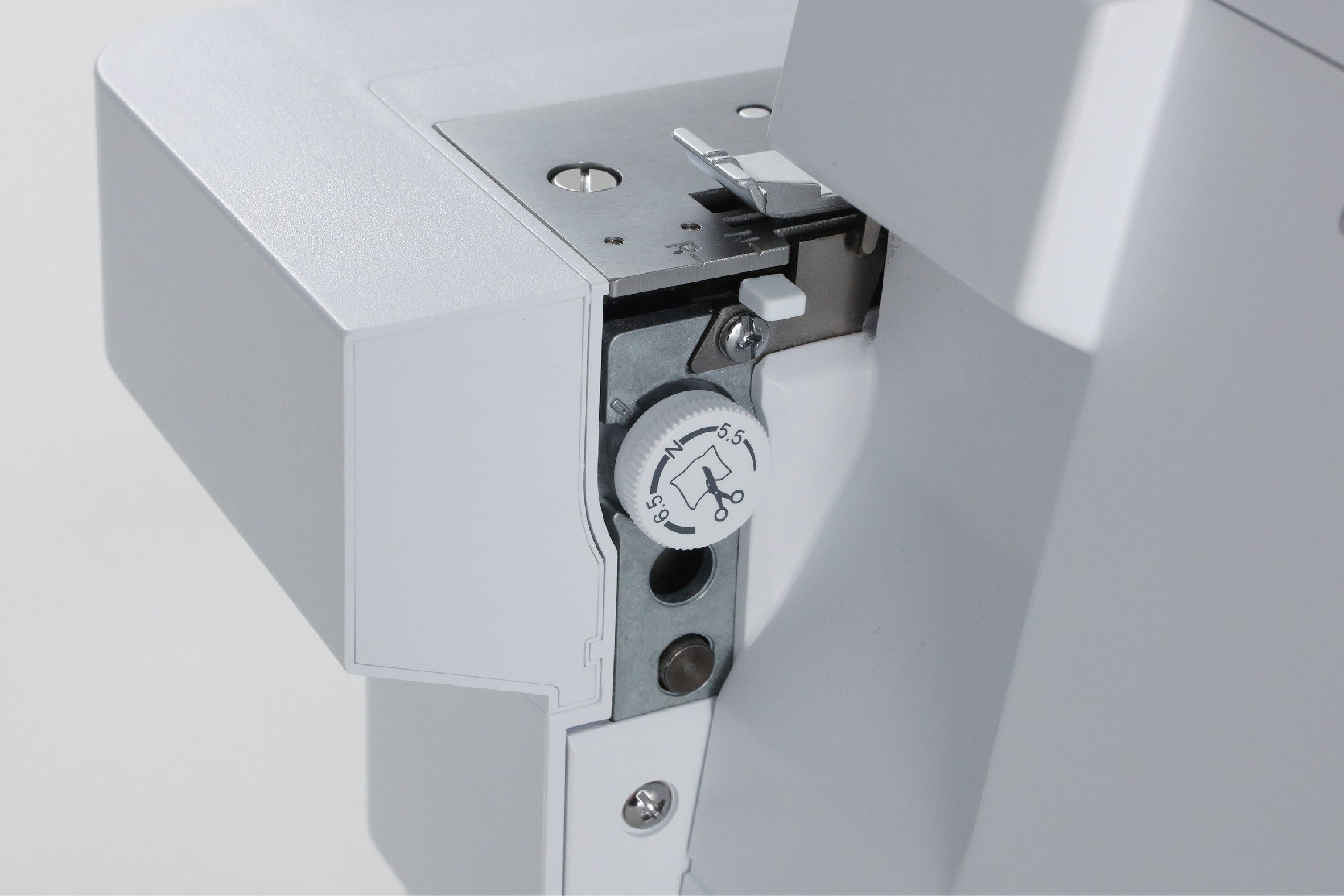

CUTTING WIDTH
Adjusting the position of the knife allows you to beautifully finish both overlock and rolled hem stitching.
FOOT PRESSURE
The presser foot pressure can be adjusted according to the fabric. Adjusting the pressure to lightweight, medium weight or heavyweight fabrics allows you to sew beautifully.

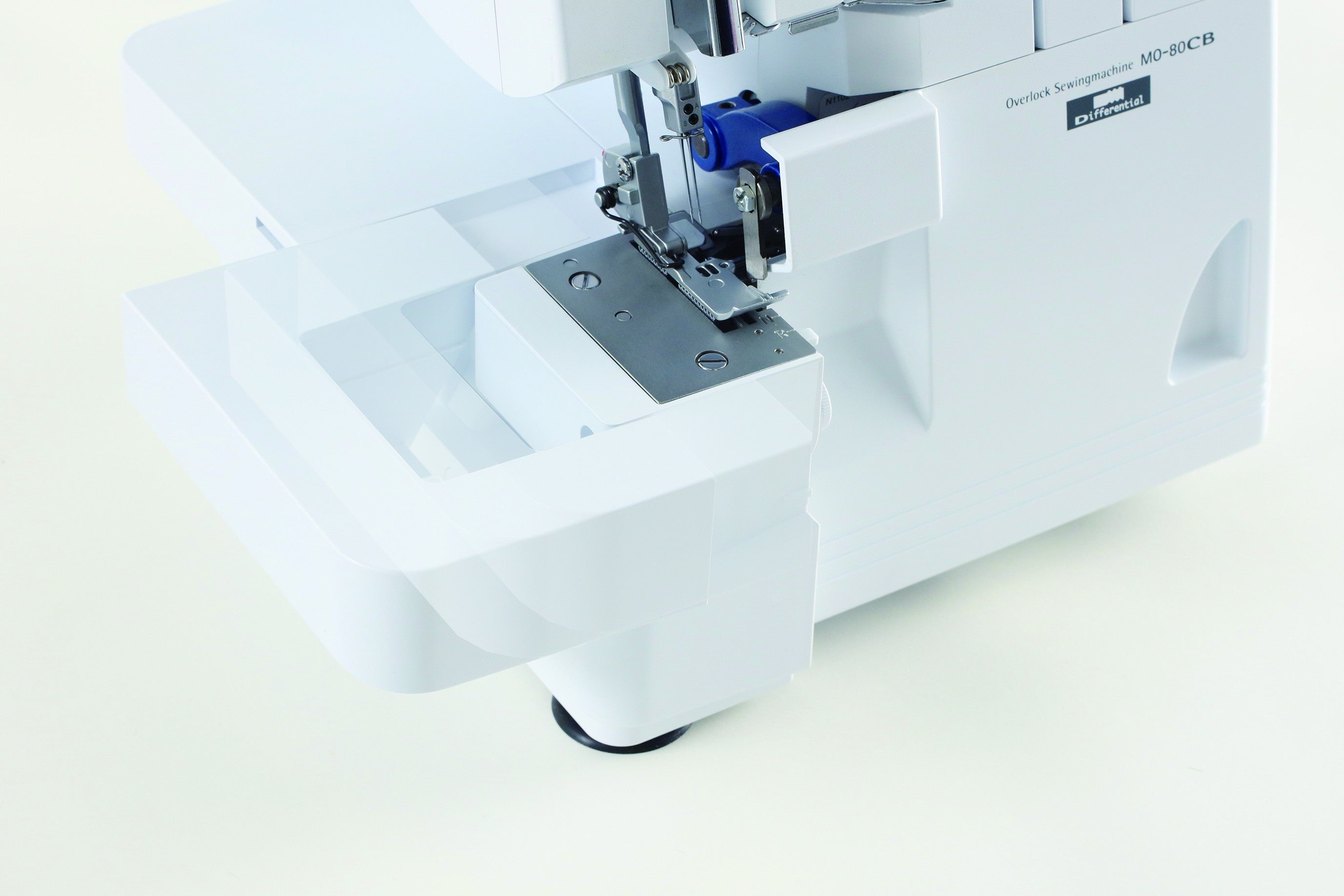

FREE ARM
Removing the auxiliary bed enables free-arm sewing. This is convenient for sewing cylindrical pieces, attaching sleeves or hemming pants.
ADJUSTABLE STITCH LENGTH
An easily accessible knob can be used to simply adjust the stitch length to between 1 and 5 mm, even while sewing.
LOWER LOOPER THREADER
Threading the lower looper can easily be done by operating a lever.
LAY-IN TYPE THREAD TENSION SLOTS
Simply raising the presser foot and passing thread straight through the slot threads the tension disc. Even thick thread is easy to thread.
RETRACTABLE UPPER KNIFE
Since the upper knife can be raised by turning a knob, threading can be safely performed. Avoid cutting fabric by turning the knob that raises the upper knife.

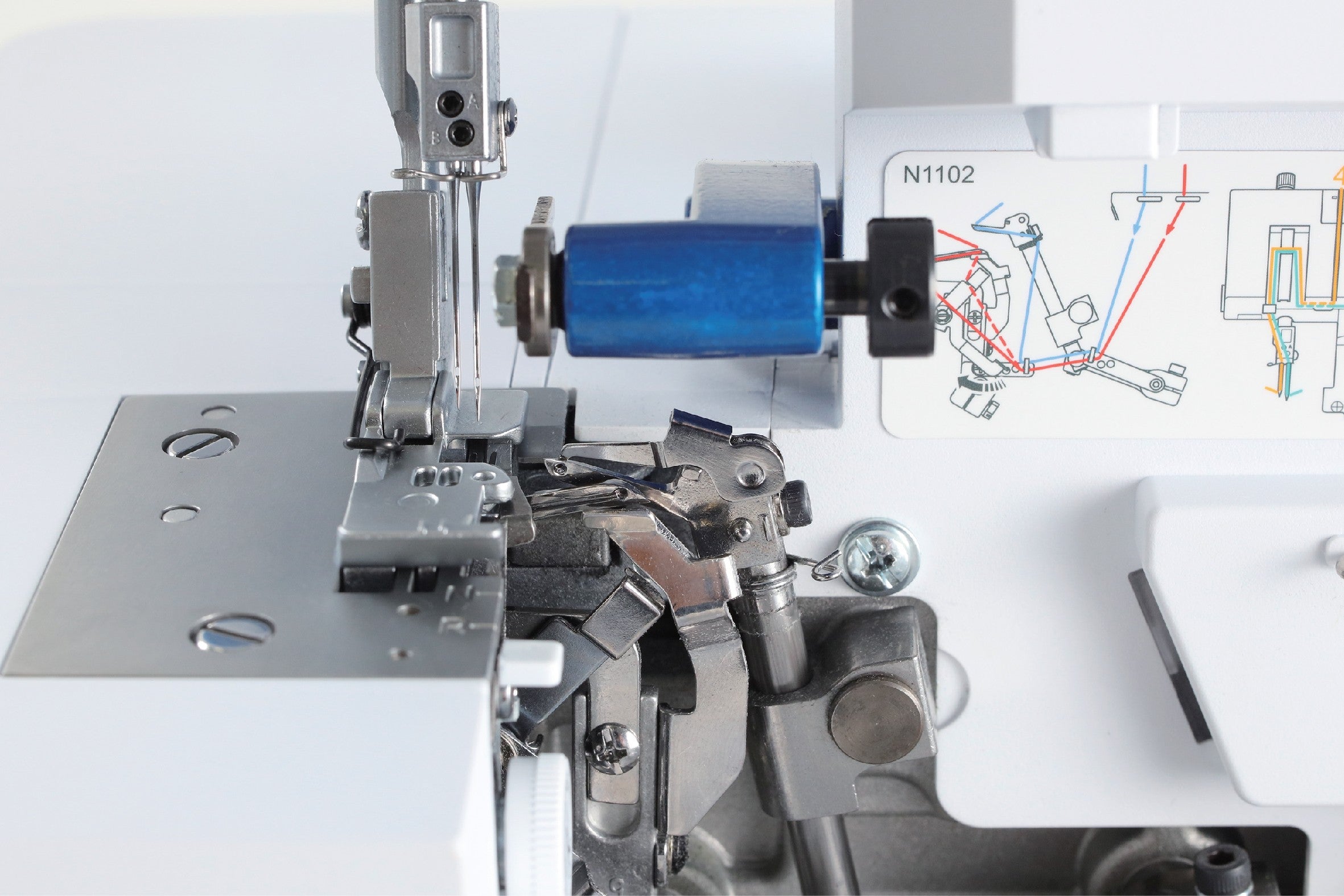

2-THREAD CONVERTER
The included 2-thread converter attachment easily converts the machine to 2-thread sewing.
BRIGHT LED LIGHTING
The workspace is brightly illuminated. The long-life, energy-efficient lights will not heat up, even after a long period of use.
Drop Feed for Free Motion Quilting
uki's rich tradition in quilting continues with the HZL-K65. Want to free motion quilt, just drop the feed dogs and go!
AUTOMATIC ROLLED HEMMING
Simply pulling a lever toward you easily switches the machine to rolled hemming.
THREAD GUIDE FOR HEAVY DECORATIVE THREADS
The thread guide for heavy decorative threads allows you to enjoy decorating your projects with thick decorative thread as the looper thread.
WASTE BASKET
A box for collecting the scraps cut off during sewing to keep the area around the sewing machine clean at all times.

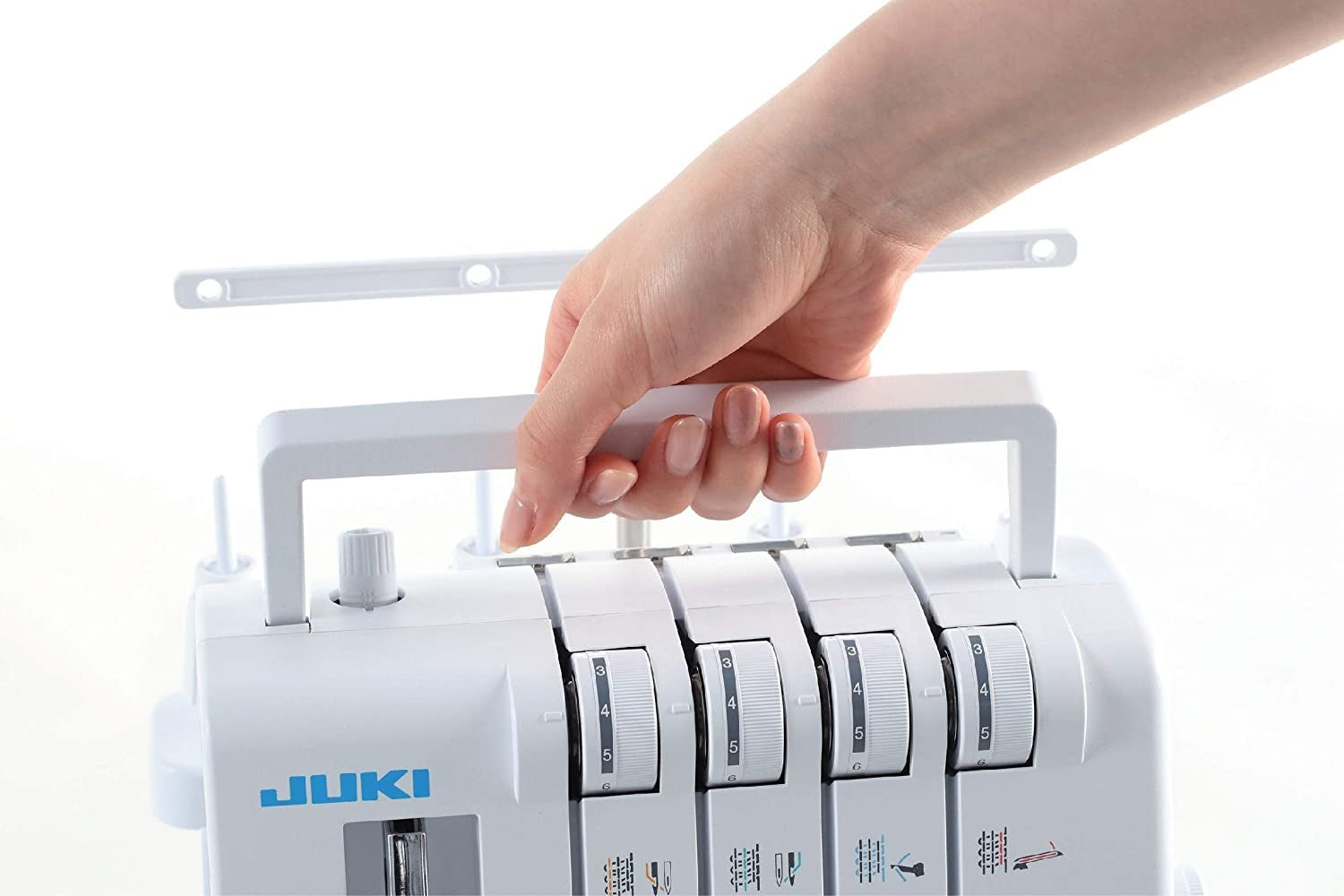

HANDLE
The attached handle allows you to transport the sewing machine with ease.
VARIOUS STITCH PATTERNS ARE AVAILABLE FOR EMBELLISHING YOUR PROJECTS
- 4-Thread Overlock
- 3-Thread Overlock
- 2-Thread Overlock
- 3-Thread Rolled Hem
- 3-Thread Narrow Overlock
- Frill 3-Thread Rolled Hem With Differential Feed
- 3-Thread Flatlock
Specifications
- Number of Threads: 2/3/4 Threads
- Needles: EL×705 Size #14/90,#12/90
- Standard Overlock Width: Right Needle/3mm-5mm, Left Needle/3mm-7mm, Rolled Hem/MIN 2mm
- Stitch Length: 1-5mm(Standard:2.5mm)
- Differential Feed: 0.6-N(1)-2.0
- Presser Foot Lift: 4.5mm
- Sewing Speed MAX: 1,300spm
- Weight: 14 lbs.
- Dimensions: 12”(w) × 11”(d) × 12”(h)
Accessories
- Tweezers
- Screw driver
- Brush
- Needle threader
- Flat blade screw driver
- Thread guide
- Oiler, 2-thread converter
- Thread unreeling cap (4)
- Spool older (4)
- Anti-spill net (4)
- Upper cutter
- Needle set
- Chip box
- Dust cover
- Extension Table
- Universal Blind Stitch (optional)
- Elasticator Foot (optional)
- Beading Foot (optional)
- Piping Foot (optional)
- Gathering Foot (optional)
- Taping Foot (optional)
